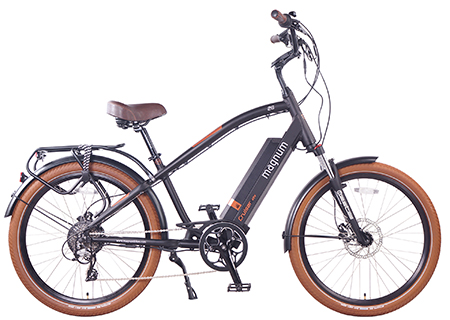

Magnum Bikes Cruiser

A beautifully designed, purpose built electric bike well suited to urban riding or commuting Step-thru frame for easy mounting and dismounting Powerful 500 watt motor paired with a large 48 volt 13 amp hour battery pack, offers ...(Read More)

Magnum Bikes Cruiser
$2,099.00
Please select options

Details

A beautifully designed, purpose built electric bike well suited to urban riding or commuting
Step-thru frame for easy mounting and dismounting
Powerful 500 watt motor paired with a large 48 volt 13 amp hour battery pack, offers both pedal assist and throttle mode
One-cable design connecting the display to the controller eliminating excess cables running to the controller.
Built in USB charge point turns your ebike battery into a power supply for all mobile devices
One year comprehensive warranty

Introduction:

Model: Magnum Cruiser
Body Position: Upright
Electric Bike Class: Throttle on Demand
Warranty: 1 Year Comprehensive

Electronic Details:

Motor: 8Fun – Rear-Mounted Geared Hub 500 watt
Battery: Samsung / DLG / Panasonic 48 volt 13 ah / 624 wh – Lithium Nickel Cobalt Manganese (Li-NCM)
Estimated Charge Time / Estimated Min and Max Range: 6.5 hrs / 30 to 60 miles
Display Type / Readouts: Fixed Backlit Monochrome LCD / Power (Current), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time
Drive Modes: Cadence Sensing Pedal Assist, Trigger Throttle
Top Speed: 28 mph (20 mph throttle only)

Bicycle Details:

Frame Types / Frame Sizes: Step-Thru / 26?*457MM
Frame Material: 6061 Aluminum Alloy
Fork Details: RST, Neon-TNL,with oil suspension and lock system
Attachment Points: Rear Rack Bosses, Fender Bosses
Gearing Details / Shifter Details: 8 Speed 1×8 Shimano Altus M310 / Shimano Triggers on Right Bar
Cranks / Pedals: Prowheel 48T / Wellgo B087, Aluminum Alloy Platform
Headset / Stem / Handlebar: Oversized, Tapered / Promax, Adjustable / Mid-Rise
Brakes Details: Tektro Hydraulic Disc Brakes with brake sensor with 180 mm Front Rotor and 160 mm Rear Rotor
Grips / Saddle: Flat Rubber / Selle Royal Gel (Brown)
Seatpost / Seatpost Diameter: Promax / 30.4*400MM
Rims: Double Walled
Fenders: Front and Rear
Tires: Schwalbe Big Ben 26 in (26? x 2.15?)/ Kevlar Lined, Reflective Sidewall Stripe / Schrader Valve

Part Numbers

MPN Store SKU
MGCR1 5065
