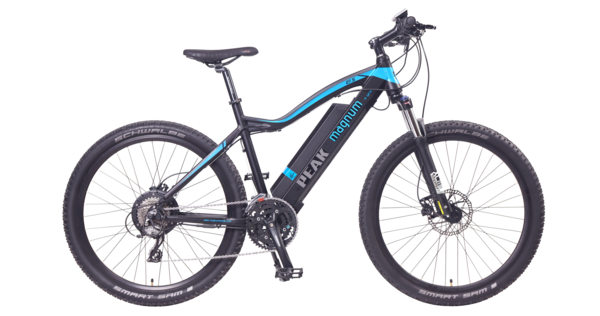

Magnum Bikes Peak
$1,999.00
29"
Please select options

Details

The Magnum Peak comes packed with power. High torque for great climbing abilities and up to 28 MPH pedal assist for fast on and off road riding. The sleek design and high-end components will turn heads.
Available with 29? or 27.5? wheel.

Description

Introduction: Magnum Peak

Suggested Use: Urban, Trail, Mountain
Warranty: 1 Year
Model Year: 2017

Electronic Details:

Motor: 8Fun Rear-Mounted Geared Hub 500 Watt Nominal / 700 Watt Peak Output
Battery: Samsung / Panasonic / LG – 48 volt 13 ah ( 624 wh) – Lithium Nickel Cobalt Manganese (Li-NCM)
Estimated Charge Time / Estimated Range: 6.5 hrs / 30 to 60 miles
Display Type / Readouts: Fixed Backlit Monochrome LCD / Power (Current), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time
Drive Modes: Cadence Sensing Pedal Assist, Trigger Throttle
Top Speed: 28 mph (20 mph throttle only)

Bicycle Details:

Total Weight/ Battery Weight: 55 lbs / 9 lbs
Frame: High Step / 19 in
Frame Material: 6061 Aluminum Alloy
Frame Fork: SR Suntour XCM HLO Suspension with 100 mm Travel, Hydraulic Lockout, 9 mm QR Skewer
GEARING DETAILS: 24 Speed 3×8 Shimano Altus Front M310, Shimano Acera M360 Rear, 11-32T
CRANKS: Shimano 170 mm Length, 28-33-42T
Stem: Tool-Free Adjustable Height
Brakes: Tektro Auriga Front and Rear Hydraulic Disc with 180 mm Front Rotor and 160 mm Rear Rotor. Front Tektro Lever with Motor Inhibitor
Grips / Saddle: Velo Flat Rubber with Lockers / Selle Royal Gel
Stem / Handlebar: Tool-Free Adjustable Height (Three Locking Positions) / Folding, Flat
Seatpost / Seatpost Diameter: Promax / 30.9 mm
Tires: Schwalbe Smart Sam, 27.5? x 2.25 / 29? x 2.25/ Kevlar Lined, Reflective Sidewall Stripe / Schrader Valve

Part Numbers

Option MPN Store SKU
29" MGPK29 5066
