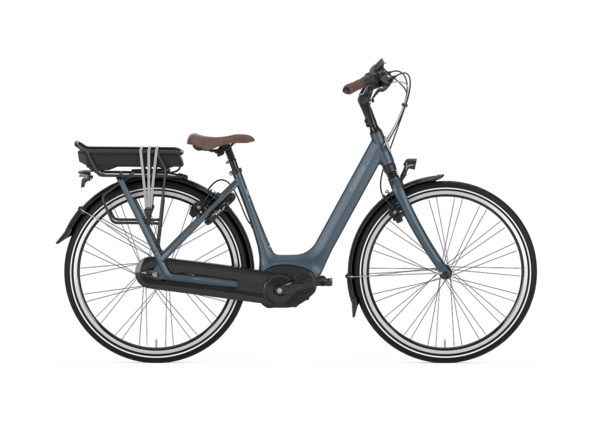

Gazelle Bikes Arroyo C8 HMB Step-Thru

Gazelle Bikes Arroyo C8 HMB Step-Thru
This item is currently not available.


Effortlessly navigate urban adventures on Royal Dutch Gazelle's Arroyo. This comfortable, easy-entry electric bike is the perfect city companion thanks to the Bosch mid-drive motor, which puts out a whopping 48Nm of torque. In layman's terms, this means you'll chew through grinding climbs and blow through tough headwinds, no problem. Bosch's Lithium Ion battery holds enough juice to carry you up to 100 miles on a full charge, in Eco assist. Shimano's Nexus internally geared hub provides 8 smooth-shifting speeds, and Magura hydraulic rim brakes provide incredible stopping power.


Frame Aluminum alloy
Fork Suspension fork, 50 mm with adjustable tension
Electric-Assist Type Pedal assist, torque-sensitive
Motor Specs Bosch mid-drive, 500Wh, 12.8Ah
Battery Type/Weight Li-ion
Range on Full Charge 88 miles
Max. Assisted Speed 20 mph
Rims/Wheels Rodi VR19, 28"
Hubs Rear: Shimano Nexus 8-speed internal
Tires Schwalbe City Lite, 700 x 35c
Crankset Miranda Alfa
Shifters Shimano Nexus 8 speed shifter
Brakes Magura HS11 hydraulic rim brakes
Handlebars Gazelle Aerowing II Vario Comfort
Saddle Selle Royal Herz
Seatpost sprung, aluminium, 27.2mm
Accessories & Extras Front light: Gazelle FenderVision Rear light: Spanninga Brasa (Power source: battery)

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Legion Blue / 46 A4957 7494
Industry Grey Matte / 49 A4951 8060
