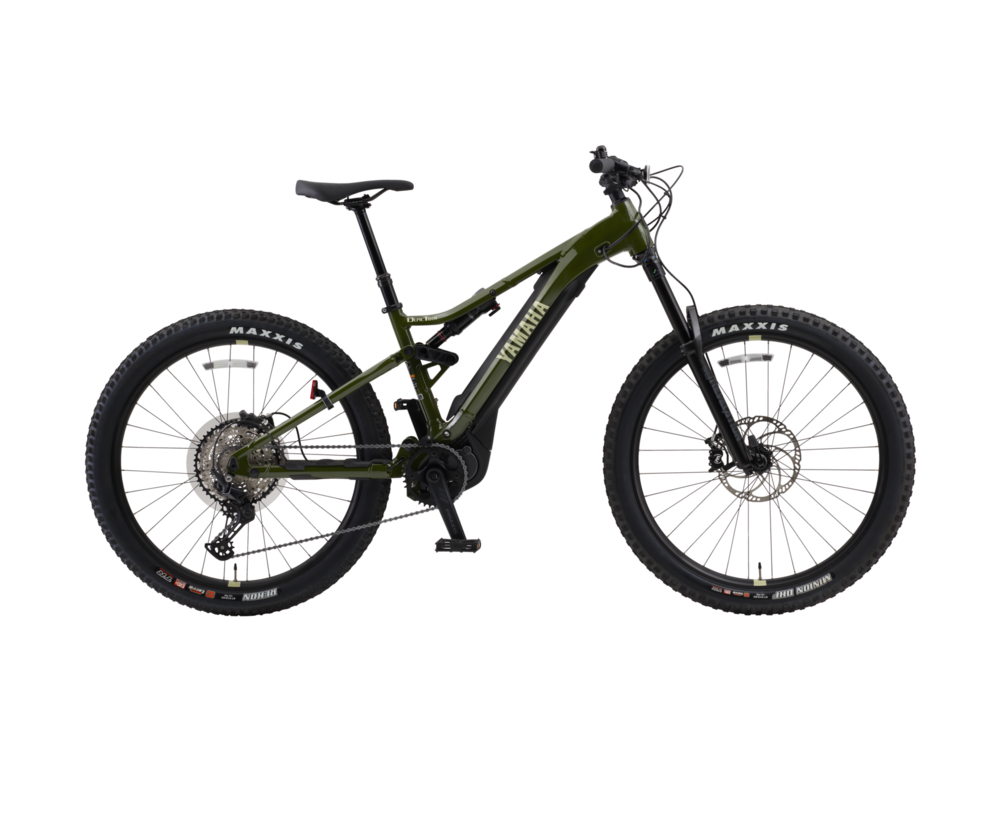

Yamaha YDX-MORO 05
$5,799.00
Details
Hear the schralp of your tires gripping the dirt but keep the whining at home. Equipped with the super silent PW-X3 drive unit, the YDX-MORO 05 makes no excuses for being one of the best All-Mountain E-Bikes out there to unleash your adventure.

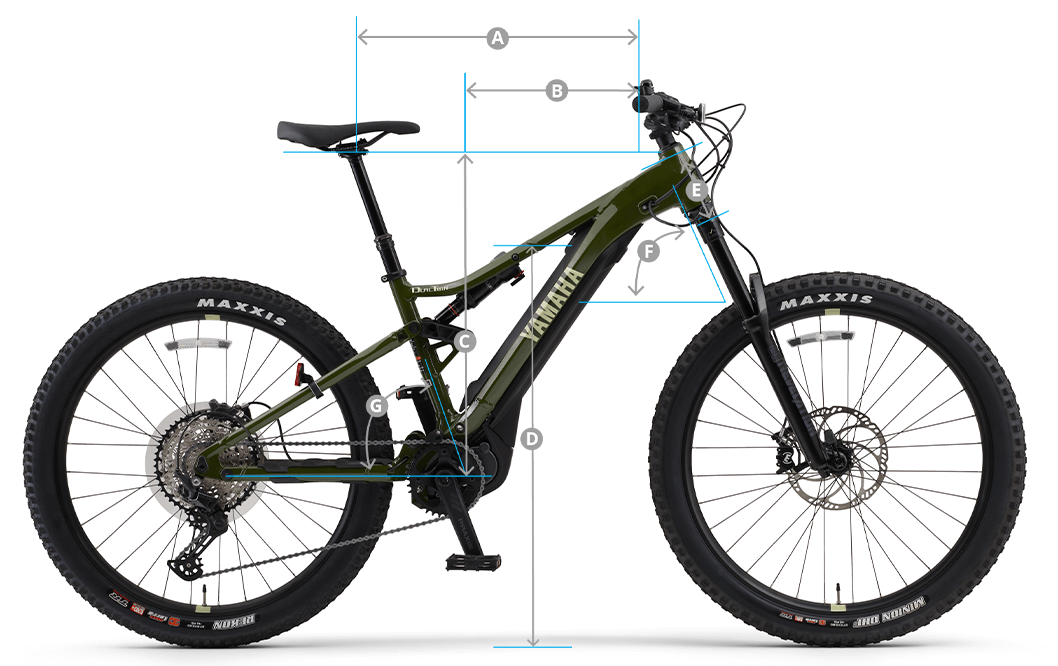

| Small | Medium | Large | ||
|---|---|---|---|---|
| A | TOP TUBE (mm) | 572 | 619 | 666 |
| B | REACH LENGTH (mm) | 393 | 437 | 482 |
| C | STACK HEIGHT (mm) | 616 | 625 | 629 |
| D | STANDOVER HEIGHT (mm) | 741 | 751 | 759 |
| E | HEAD TUBE LENGTH (mm) | 110 | 120 | 125 |
| F | HEAD TUBE ANGLE | 66.3° | 66.3° | 66.3° |
| G | SEAT TUBE ANGLE | 70.3° | 70.3° | 70.3° |
| Size | Rider Height |
|---|---|
| Small | 5'2"-5'6" |
| Medium | 5'6"-5'11" |
| Large | 5'9"-6'7" |
Specs
| Motor | YAMAHA PW-X3 |
|---|---|
| Pedals | Included |
| Battery | Yamaha 500Wh with Charge-life indicator and Self-diagnosis display Anti-Vibration Mounting Plate Weight: 6.61 lbs 500Wh 36V 4-hour charge time |
| Controller/Display | YAMAHA INTERFACE X |
| Fork | ROCKSHOX REVELATION RC 160mm TRAVEL |
| Rims | Aluminum |
| Stem | Alloy 4-both faceplate 35.0 diameter 40mm length |
| Chain | KMC eTURBO EPT 122 links |
| Frame | YAMAHA Dual Twin Frame Tapered Headtube Internal cable/housing routing 2-bolt drive unit mount 12x148 rear axle spacing Integrated YAMAHA speed sensor harness |
| Tires | MAXXIS 27.5X2.6 (F) MINION DHF (R) REKON |
| Brakes | MAGURA MT30 (F) 4-PISTON (R) 2-PISTON 203MM CENTERLOCK ROTOR (F/R) |
| Saddle | Velo/Yamaha |
| Spokes | 14g alloy |
| Wheels | Aluminum |
| Headset | Integrated 1 1/8" |
| Crankset | PRAXIS E-CRANK ARM 165mm LENGTH |
| Seatpost | TRANZX 30.9 dia. TRAVEL (S) 125mm (M) 150mm (L) 170mm |
| Shifters | Shimano DEORE SL-M6100-R |
| Chainrings | Samox 36T |
| Handlebars | Alloy 35.0 diameter 780mm width 30mm rise |
| Rear Shock | ROCKSHOX DELUXE SELECT + |
| Tape/Grips | VELO Single Ring Locking |
| Brake Levers | MAGURA MT30 |
| Rear Derailleur | Shimano DEORE RD-M6100-SGS |
| Accessories & Extras | ISCG05 chainguuide, Safety bell, 3-Year Warranty on Frame, Motor, Battery* |
| Cassette/Freewheel | Shimano SLX CS-M7100-12 (10-51T) |
* Subject to change without notice.
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Forest Green / Small | YMOR5SFRSTG | 210000032008 |
| Forest Green / Medium | YMOR5MFRSTG | 210000031935 |
| Forest Green / Large | YMOR5LFRSTG | 210000031934 |
