Magnum Bikes Navigator X

Magnum Bikes Navigator X
  • Color: Black w/ Silver Accents
  • Color: Black w/ Silver Accents
  • Color: Black w/ Blue Accents
  • Color: Black w/ Blue Accents
This item is currently not available.

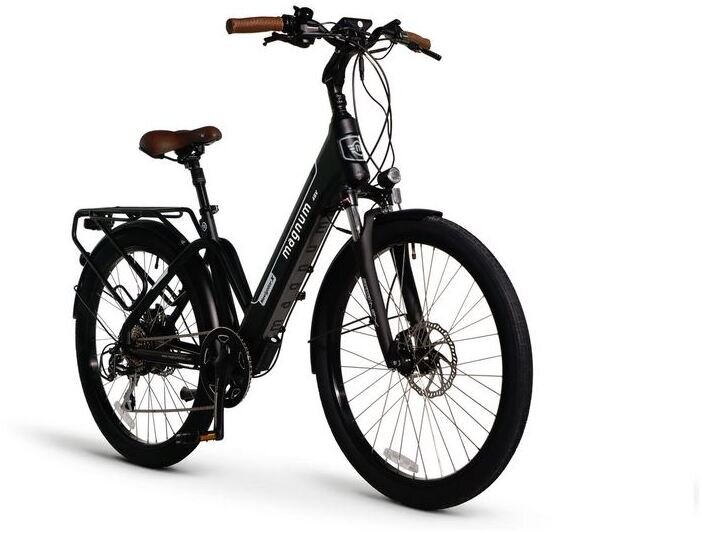

A beautifully designed, purpose built electric bike well suited to urban riding or commuting. Step-thru frame for easy mounting and dismounting. Powerful 500W 48V power system with a fully integrated battery.


Frame Aluminum Alloy
Fork SR Suntour NEX ATB 26”
Tires CST 26 x 2.25
Crankset Das-Kit Aluminum Alloy
Chain KMC
Rear Derailleur Shimano 8-Speed
Shifters Shimano 8-Speed
Tape/Grips Ergo Brown Faux Leather
Stem Promax Tool-Free Adjustable
Brakes Tektro Hydraulic Disc Brakes
Pedals Wellgo
Saddle Selle Royal Brown Freeway
Weight 59 lbs (26.75 kg)
Battery 48V 12ah 576Wh
Motor Das-Kit 500 Watts
Range 25-50 miles
Charge Time 6.5 hrs
Class 2 (25 MPH top speed, 20 MPH with throttle)
Display Das-Kit C7, Backlit, Monochrome LCD (Read: Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage)

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Black w/ Silver Accents Navigator X MB-SLV 210000030688
Black w/ Blue Accents Navigator X MB - BLU - 12ah 210000030686
