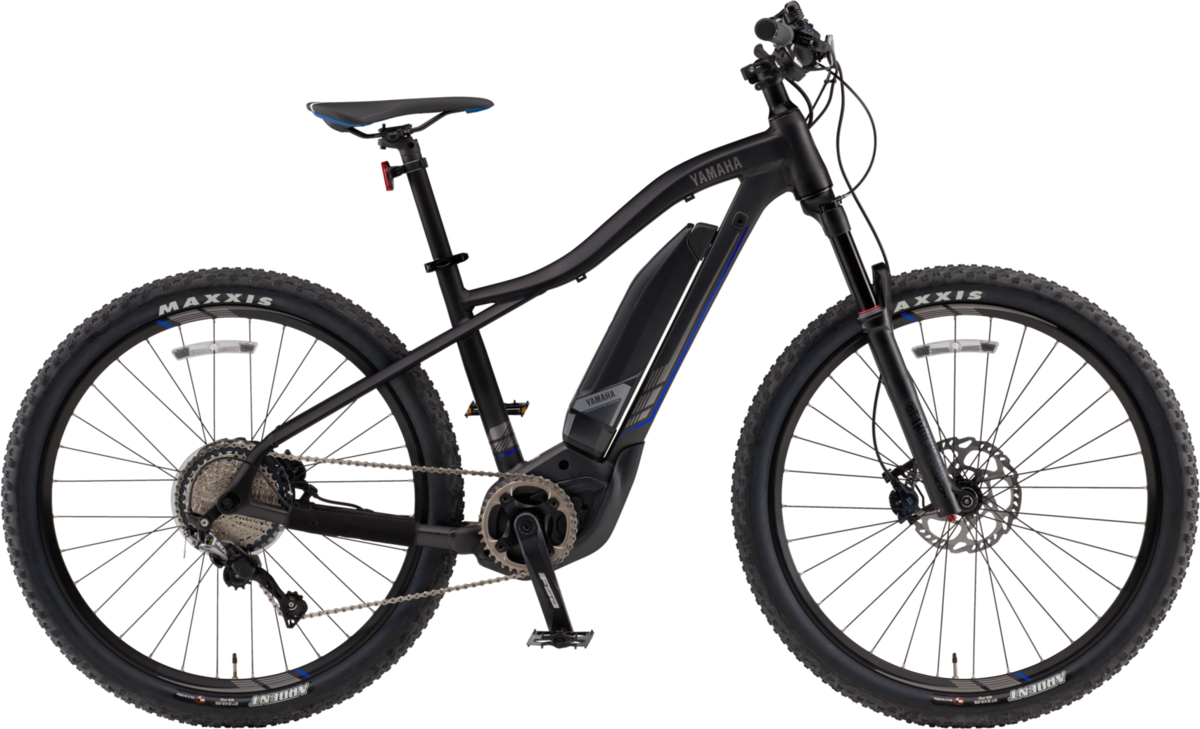

Yamaha YDX-Torc

Yamaha YDX-Torc
This item is currently not available.


No need to load an eMTB onto your car to ride that hero dirt on your local trails. Adventure begins at the end of the driveway with electric pedal assist that will get you to the singletrack and up the most giant climbs. Explore new routes and take the long-way home. You’ll be back before you know it.

- Hydroformed and butted aluminum frame
- RockShox Recon RL suspension fork
- 27.5in. Welded and pinned wheel set
- 11-speed Shimano SLX components
- Shimano SLX iSpec li disc brakes
- PW-X motor

WARNING: This product can expose you to chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. For more information, go to


Motor PW-X. 2-bolt mount
Battery Side exit Yamaha 500Wh 36V Lithium-Ion
Display Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity
Max Assisted Speed 20mph
Charger Yamaha battery charger
Frame Yamaha hydroformed and butted aluminum tubing, Tapered headtube, Internal cable/housing routing, Additional mounts for external dropper post compatibility
Fork RockShox Recon RL 120mm travel, 15mm Maxle, Remote lock-out lever. Tapered aluminum steerer, 1 1/8in - 1 1/2in
Headset Integrated tapered headset with 30mm headset spacers
Axles Front: 12x100mm Thru-Axle Rear: 12x142mm
Rims/Wheels 27.5in. Welded and pinned Rim
Spokes Spokes SUS304
Tires Maxxis Ardent 27.5 x 2.25in Silkworm puncture protection under tread PV tube
Chainrings Praxxis Wave 36T 104 BCD
Chain KMC X11e
Rear Derailleur Shimano SLX M7000 GS Shadow +
Cassette/Rear Cogs Shimano SLX CS-M7000 11-speed 11/42T
Shifters Shimano SLX SL-M7000-IL 11-speed, i-Spec II integrated with M7000 brake lever
Handlebars Alloy 20mm riser bar, 31.8mm diameter, 730mm width
Tape/Grips Locking Dual Core
Stem Yamaha Alloy 4-bolt faceplate, 31.8 diameter, 60mm length
Brakes Shimano SLX iSpec li integrated clamp with M7000 shifter. 180mm SM-RT68 Centerlock Rotor
Saddle Yamaha Plus Cro-Mo Rails
Seatpost Alloy 30.9 x 300mm(S),330mm(M),380mm(L)
Accessories & Extras Yamaha keys, Yamaha battery charger, Bell

* Subject to change without notice.
